Why DC Series Motor is Used For Driving Heavy Loads?

Last Updated on February 1, 2024 by Electricalvolt

The field and armature winding of the DC series motor are connected in the series and carry the same current. The torque of the DC motor is proportional to the field current and armature current. In the case of the DC series motor, the torque becomes the square of the armature current. This is why the DC series motor is used for driving heavy loads.

Why DC series motor has high starting torque?

Higher starting torque is required to drive high-inertia loads. Locomotive engines and bucket elevators demand higher starting torque for motion from a standstill position.

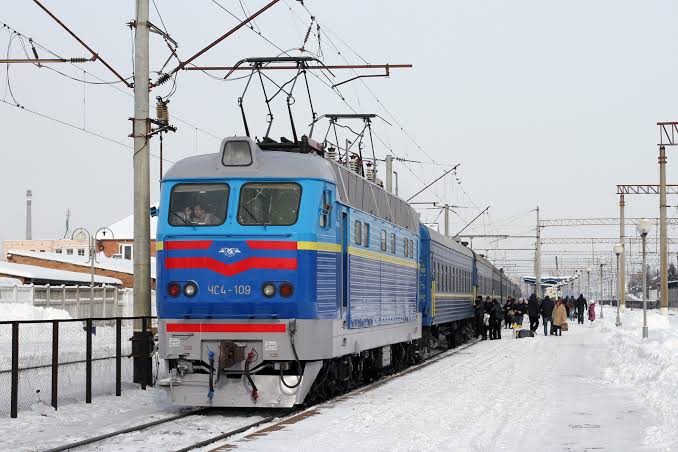

Dc series motor used to start the traction machines

Construction of DC Series Motor

The DC series motor has a field winding and an armature winding. Both windings are connected in series and the same magnitude of current flows through both windings.

The field winding has few turns of thick wire as the full armature current passes through the field winding.

In dc motor armature and field winding connected in the series

The DC series motor provides high starting torque because the field and armature winding are connected in the series and carry the same current.

Why DC Series Motor is Used For Driving Heavy Loads? proof

The starting torque of the DC series motor is proportional to the square of the armature current. The armature current torque characteristics of the DC series motor are given below.

armature current Vs torque characteristics od dc series motor

That is why the DC series motor is capable of producing high starting torque, and it is preferred for driving heavy loads.

High-inertia loads, like cranes, need a high starting torque. Cranes use a DC series motor.
