Orifice Flow Meter- Its Working, Types of Orifice Plates

Last Updated on June 4, 2022 by Electricalvolt

Orifice flow meters are a kind of inferential flow meters. Here, Orifice plate generates a differential pressure, which is in relation with the flow passing through the line.

You may have heard of orifice type flow meters. Many of you might have worked on them also. But do you know why are Orifice type flow meters so widely used? Let’s have a look on Orifice type flow meters. Orifice flow meters are a kind of inferential flow meters. Here, Orifice plate generates a differential pressure, which is in relation with the flow passing through the line.

Orifice flow meters are very simple in construction point of view. Only a circular disc and a hole (orifice plate) in it, and a transmitter connected to it. That is very simple if you look at it. The construction looks, however, simple but the engineering behind it is not.

Orifice Flow Meter Working Principle

Before we discuss the Orifice flow meter construction details, let’s have a look on a term called ‘Vena-Contracta’

As shown in below figure, whenever a fluid passes through a restriction, there is change in fluid’s velocity and pressure. The point where the fluid’s velocity is maximum is termed as Vena-Contracta point. The pressure at Vena-Contracta point is low.

Vena-Contracta point

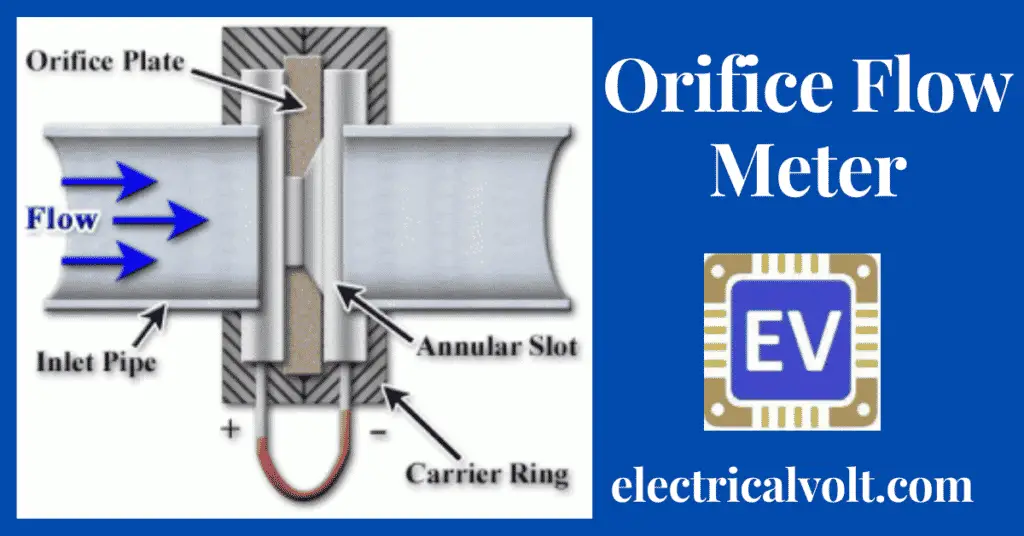

The orifice plate is a circular plate with a hole in it. This orifice plate is installed in a pipe. As the fluid passes through the orifice plate, a differential pressure is created across the orifice plate. The tappings are taken from the upstream and downstream of the orifice plate. The differential pressure is sensed using these tappings and is given to a transmitter. The transmitter is a differential pressure transmitter.

Orifice Flow Meter Working Principle

To get value of flow, we need to use square root functionality because differential pressure is proportional to the square of flow. Or in other words, flow is proportional to square root of differential pressure.

Orifice plate is designed considering an important factor called Beta Ratio.

What is Beta Ratio?

Beta ratio is the ratio of orifice plate’s bore or says internal diameter divided by the pipe’s bore or say internal diameter.

Beta ratio formula

The value of beta ratio for any given orifice is between 0.3 to 0.75.

Types of Orifice Plates

1. Concentric type Orifice Plate

We use concentric orifice mainly for measuring flow of clean liquids, gases and low velocity steam flows.

Concentric type Orifice Plate

The plate of this type of orifice has a sharp square edge bore at inlet and a bevel d structure at outlet side. The bevel shape helps to recover the pressure drop. Also because of this bevel structure (usually at 45 degree), vortex do not form. This in turn helps reduce the damage to the orifice as well as pipe.

2. Eccentric type Orifice Plate

Eccentric type orifice plates look similar to concentric type orifice plate. The only difference is that here in eccentric type orifice plate, the bore is not in center.

Eccentric type Orifice Plate

The bore is located in bottom in case of slurries or liquids with solids. While for gaseous fluids, the hole is located on the top side of the orifice plate. This allows for easy flow of the fluids.

3. Quadrant Edge Orifice Plate

Quadrant edge orifice plate has slightly different structure. The plate is constructed such that 2 different bores are forms. These 2 different bores are having counter bore structure. This allows quadrant edge orifice plate to measure flow of high viscous fluids.

3. Quadrant Edge Orifice Plate

This orifice is mainly used in heavy oil, medicinal syrups and other heavy chemical’s flow measurement. Typically Reynolds number for these heavy viscosity fluids is below 10,000.

4. Segmental type orifice plate

Another typical variation we see in orifice plate design is segmental orifice plate. Different from all other orifice plate, this has only a segment of bore. All other orifice have a circular bore.

Segmental type orifice plate

The main advantage for segmental orifice plate is that it allows smooth flow for fluids with highest viscosities which may contain solids and slurries also. Other structure like bevel remains same like that of concentric type orifice plate.

Why does an orifice have holes in top and bottom?

Orifice plates are designed to measure flow of fluids only. It may be gas or liquid with verities of viscosity and even with slurries.

Now imagine you have an orifice installed in steam line. You will use a concentric or eccentric orifice with bore a top. Now what will happen when some part of steam condenses? Yes, you are right, liquid build up will start and create problems.

So solution for this is an orifice with a small bore in bottom. This small bore in bottom will allow liquid build up to pass easily.

vent and drain hole in orifice plate

Similar is the case with liquid flow measurement. In this case, vapors will form and create problems. So here a small bore at top of orifice plate will solve problem of vapor build up.
