Difference Between SWA and STA Cable

In electrical installations, cables must withstand mechanical stress and environmental conditions while ensuring safety and reliability. The major difference between SWA and STA cable lies in their armor construction: SWA (Steel Wire Armored) cables use round steel wires, providing higher mechanical strength and flexibility, whereas STA (Steel Tape Armored) cables use flat steel tapes, making them lighter and more cost-effective but less robust.

Both serve protective functions, but their applications vary depending on strength requirements, installation environment, and budget. Let’s explore the two types in detail.

Table of Contents

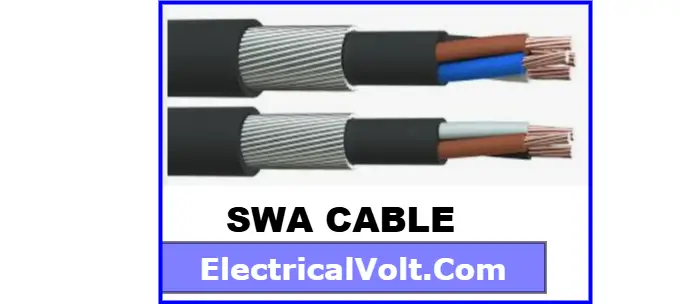

What is SWA Cable?

Steel Wire Armored (SWA) cable is a power cable with a protective layer of steel wires around the insulated conductors. The steel wire armor gives it excellent mechanical strength, making it suitable for underground installations and areas exposed to impact or mechanical stress.

Key Features of SWA Cable:

Conductor: Stranded copper or aluminum, Class 2
Insulation: XLPE or PVC depending on application
Armour: Galvanized round steel wires for strength
Outer Sheath: PVC, PE, or LSZH material
Sheath Color: Usually black (can vary by standard)
Rated Temperature: -15℃ to +90℃ continuous operation
Rated Voltage: 600/1000V up to 33kV
Special Property: High tensile strength and impact resistance for underground or outdoor use

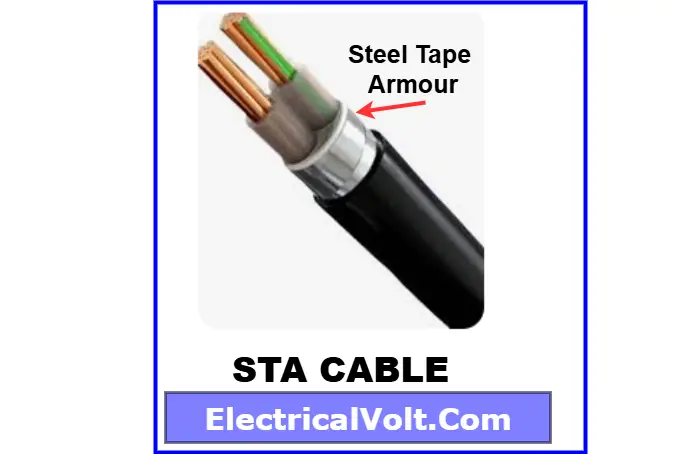

What is STA Cable?

Steel Tape Armored (STA) cable is another type of armored power cable where the protective layer is made of steel tapes instead of wires. The steel tape armor makes the cable resistant to external damage but provides less mechanical strength compared to SWA.

Key Features of STA Cable:

Conductor: Solid or stranded copper, Class 1/2
Insulation: PVC or XLPE insulation
Armour: Double-layer flat steel tapes, helically applied
Outer Sheath: PVC or PE jacket
Sheath Color: Black or customized as per standards
Rated Temperature: -15℃ to +90℃ continuous operation
Rated Voltage: 600V to 35kV
Special Property: Economical, lightweight design suitable for indoor and low mechanical stress conditions

Here’s a quick comparison to understand the differences clearly:

Feature	SWA Cable	STA Cable
Full Form	Steel Wire Armored Cable	Steel Tape Armored Cable
Armour Type	Galvanized round steel wires	Flat steel tapes
Conductor	Stranded copper/aluminum	Solid or stranded copper
Mechanical Strength	High (excellent impact resistance)	Moderate (lower than SWA)
Flexibility	More flexible	Less flexible
Weight	Heavier	Lighter
Voltage Rating	600/1000V to 33kV	600V to 35kV
Operating Temp.	-15℃ to +90℃	-15℃ to +90℃
Special Use	Underground, outdoor, high-stress areas	Indoor, low-stress environments
Cost	Higher	More economical

Applications of SWA and STA Cable

SWA Cable Applications:
- Underground installations
- Outdoor industrial projects
- Power distribution in factories and plants
- High mechanical stress areas
STA Cable Applications:
- Indoor power supply systems
- Buildings and residential wiring
- Areas with low risk of mechanical damage
- Cost-sensitive projects

Conclusion

The main difference between SWA and STA cable lies in their armor construction and mechanical strength. SWA cables, with steel wire protection, are designed for heavy-duty, underground, and outdoor applications where durability is crucial. On the other hand, STA cables, armored with steel tape, are more suitable for indoor or less demanding environments.

When choosing between the two, consider the installation environment, required strength, and budget. For rugged, high-stress conditions, SWA is the right choice. For lighter, cost-effective indoor use, STA serves the purpose well.

Read detailed guide: What is Armoured Cable? Types, Uses & Construction
