A 2 pin electrical plug is one of the most commonly used connectors for powering low-power electrical appliances. It has two metal pins—one for the live wire and one for the neutral wire. Unlike a 3 pin plug, it does not include an earthing pin, which makes it more compact but less safe for high-power applications.
From mobile chargers to lamps, 2 pin plugs are widely used because of their simplicity and universal compatibility in many countries. Let’s explore its working, features, types, applications, and safety aspects in detail.
What is a 2 Pin Electrical Plug?
A 2 pin plug connects an electrical device to a power source. It has two connections:
- Live Pin (Phase) – Supplies electric current from the source.
- Neutral Pin – Completes the circuit by returning the current.
Since there is no earth pin, these plugs are suitable only for devices with double insulation (two protective insulation layers around the wires or casing).
Example: Mobile chargers, LED lamps, and small electronic devices.
Construction of a 2 Pin Plug
A 2 pin plug is simple in design but carefully engineered for safety and convenience.
Main parts include:
- Casing – Usually made of plastic or thermosetting material for insulation.
- Pins – Two metallic prongs (flat or round) that fit into the socket.
- Wire Connection Terminals – Points where live and neutral wires are attached.
- Grip/Holder – Provides firm handling for plugging in and out.
Most plugs are rated for 2.5A to 6A current and voltages between 110V to 250V depending on the region.
Types of 2 Pin Electrical Plug
Depending on the region and socket design, there are several types of 2 pin plugs:
1. Flat 2 Pin Plug (Type A)
- Common in USA, Canada, Japan.
- Two flat parallel pins.
- Compact design for small appliances.

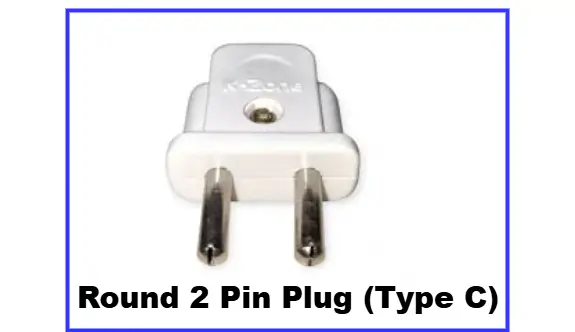

2. Round 2 Pin Plug (Type C)
- Common in Europe, South America, Asia.
- Two round pins.
- Fits in most universal sockets.

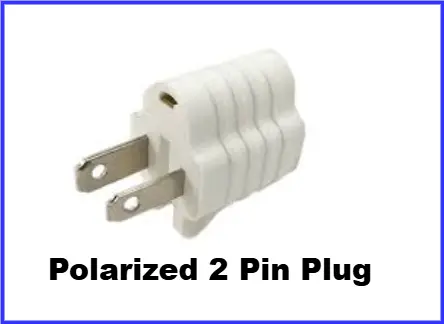

3. Polarized 2 Pin Plug
- One pin is wider than the other.
- Ensures the live and neutral wires are always connected correctly.
- Used in devices where polarity matters (like some audio equipment).
Technical Specifications of 2 Pin Electrical Plug
| Feature | Specification |
| Number of Pins | 2 (Live and Neutral) |
| Voltage Rating | Usually 220–250 V AC |
| Current Rating | Typically 2–16 A |
| Pin Material | Brass or nickel-plated brass |
| Insulation Material | High-quality PVC or thermoplastic |
| Plug Type | Type C (Europlug) or Type A (North America) |
| Frequency | 50–60 Hz |
| Safety Standard | IS 1293 / IEC 60884-1 |
| Earthing | Not provided (double-insulated devices only) |
| Shape of Pins | Round or flat depending on region |
Applications of 2 Pin Electrical Plug
The 2 pin plug is found in almost every household and workplace. Some typical applications include:
- Mobile phone and laptop chargers
- Table lamps and LED lights
- Small kitchen appliances (mixers, blenders, toasters)
- Audio devices (radios, speakers, headphones)
- Personal care devices (hair dryers, shavers, trimmers)
- Fans and portable heaters (low wattage)
They are best for low-power appliances under 1000W.
Advantages of a 2 Pin Plug
- Simple and affordable design
- Lightweight and portable, suitable for travel
- Compatible in many countries with Type A or C sockets
- Safe for low-power, double-insulated devices
Disadvantages of a 2 Pin Plug
- No earthing protection, hence less safe
- Not suitable for heavy appliances like refrigerators or washing machines
- Can loosen in some sockets, causing sparking or heating
Safety Tips for Using 2 Pin Electrical Plug
- Always check the plug and cord for cracks or damage before use.
- Use only with appliances that have double insulation.
- Avoid overloading the plug beyond its rated current.
- Hold the plug firmly when unplugging—do not pull the cord.
- Do not use in wet or damp conditions unless designed for it.
- Use travel adaptors or converters when moving between countries with different socket standards.
Difference Between 2 Pin and 3 Pin Plug
| Feature | 2 Pin Plug | 3 Pin Plug |
| Pins | Live and Neutral | Live, Neutral, and Earth |
| Safety | Less safe (no earthing) | Safer due to grounding |
| Applications | Low-power, double-insulated devices | High-power appliances |
| Cost | Cheaper | Slightly costlier |
Conclusion
The 2 pin electrical plug is one of the simplest and most widely used connectors in the world. It is compact, affordable, and suitable for low-power appliances. However, because it lacks grounding, it should not be used for heavy electrical equipment.
If handled with care and used for the right applications, a 2 pin plug remains an essential part of everyday electrical systems.
