The Multiplication Factor (MF) of energy meters is a scaling factor used to convert the meter’s raw reading of electrical energy consumption into a value that accurately reflects the system’s actual energy usage.

Energy meters are essential devices used to measure electrical energy consumption in homes, businesses, and industrial settings. A critical aspect of ensuring accurate readings from these meters is calculating the Multiplication Factor (MF). The Multiplication Factor of an energy meter corrects the raw data provided by the meter, accounting for the differences between the meter’s configuration and the actual electrical conditions. This article explores the importance, components, and steps in calculating energy meters’ Multiplication Factor.

### Importance of the Multiplication Factor of Energy Meters

**Accuracy**: The Multiplication Factor ensures that the energy consumption readings from the meter are accurate and reflective of actual usage.**Billing**: Accurate energy readings are crucial for correct billing, preventing overcharging and undercharging consumers.**Energy Management**: Correct application of the Multiplication Factor aids in efficiently monitoring and managing energy consumption.

### Components of the Multiplication Factor

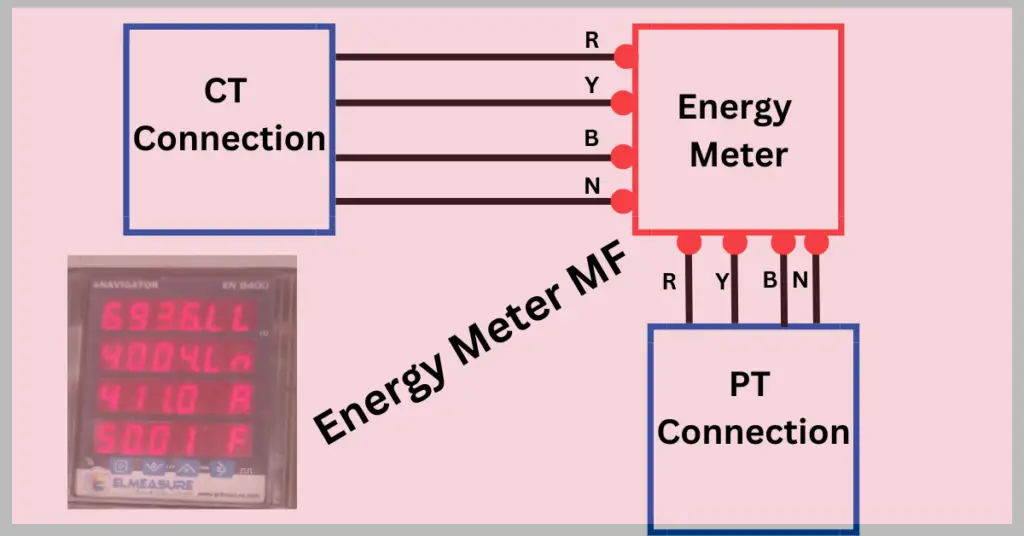

The Multiplication Factor of an energy meter is derived from the characteristics of the current transformers (CTs) and potential transformers (PTs) used in conjunction with the meter. It can be expressed as:

where:

**CT Ratio (Current Transformer Ratio)**: The ratio of the primary current (current in the main circuit) to the secondary current (current supplied to the meter).**PT Ratio (Potential Transformer Ratio)**: The ratio of the primary voltage (voltage in the main circuit) to the secondary voltage (voltage supplied to the meter).

### Steps to Calculate the Multiplication Factor of Energy Meter

#### Step 1: Determine the CT Ratio

Identify the primary and secondary current ratings of the current transformer.

where I_{p} is the primary current rating and I_{s} is the secondary current rating.

#### Step 2: Determine the PT Ratio

Identify the primary and secondary voltage ratings of the potential transformer.

where V_{p} is the primary voltage rating and V_{s} is the secondary voltage rating.

#### Step 3: Calculate the Multiplication Factor

Multiply the CT ratio by the PT ratio:

**MF=CT Ratio×PT Ratio**

### Example Calculation

Consider an energy meter installed in a system with the following transformer ratings:

**Current Transformer (CT)**: Primary current = 1000 A, Secondary current = 5 A**Potential Transformer (PT)**: Primary voltage = 11 kV, Secondary voltage = 110 V

**Calculate the CT Ratio**:

CT Ratio=1000/5=200

**Calculate the PT Ratio**:

PT Ratio=11000/110=100

**Calculate the Multiplication Factor :**

MF=CTR X PTR

=200×100=20000

Thus, the energy meter’s multiplication factor in this setup is 20,000. This means that the raw reading from the energy meter must be multiplied by 20,000 to obtain the actual energy consumption.

### Applying the Multiplication Factor

After calculating the Multiplication Factor, it is applied to the readings from the energy meter. For instance, if the meter reads 50 kWh, the actual energy consumption would be:

Actual Energy Consumption

=Meter Reading×MF

=50×20000

=1,000,000 kWh

If the internal CT and PT of the meter have a conversion of incoming current and voltage, then the meter’s CT and PT ratios need to be taken into account to calculate the actual energy. In this condition, the multiplying factor(MF) of energy meter is,

### Conclusion

The calculation of the Multiplication Factor of energy meters is a fundamental process to ensure accurate energy measurement and billing. By correctly applying the CT and PT ratios, utility companies and consumers can be confident that the recorded energy usage reflects true consumption, enabling fair billing and effective energy management. Understanding and applying the Multiplication Factor of energy meters is essential for all energy distribution and consumption stakeholders.
