Annunciator Panel has a grouping of annunciator lights that indicates the status of the system or equipment. It is used in process industries, buildings and other installations. In modern industrial automation, the Annunciator Panel serves as the primary visual interface for alarm management, ensuring rapid operator response to critical process deviations.
What is an Alarm Annunciator Panel?
The term annunciator panel refers to a set of warning or advisory indicators in the control room. This indicator alerts operators to one of many significant problems with operation progress-most annunciator panel layouts group warning indicators by the systems they serve.
Some warning indicators require resetting when activated; others simply light up for a short time and some require a specific action before automatically resetting. New panels are equipped with digital indicators instead of traditional incandescent lamps.
The annunciator panel is also often referred to as a “light panel” and is used to draw the plant operator’s attention to a variety of process and even system problems. It functions as a centralized alarm monitoring system that integrates multiple field inputs into a single display unit. The low/high alarm conditions will generally be grouped into advice, caution, and warning categories each with its course of action.
Alarm annunciators operate independently, available with 2, 4, 6, 8, 12, 16, 24, 32, and 48 inputs. In general, however, the annunciator panel is usually located in the centre of the control room, or it may be located near the location of the machinery, known as the local annunciation panel.
They also often feature audible warnings to accompany the visual indicators. Modern units often comply with ISA-18.1 standards for alarm annunciator sequences.
Typical annunciator warnings in the process industry usually include tank high level, high line pressure, under pressures, high process temperature, and compressor trip. Also, electrical and hydraulic system alerts, provide early warning to operators of potentially hazardous system development that, require operator intervention.
All indications on the announcement panel are critical including fire and system failures that require immediate action.
Purpose of Alarm Annunciator
Annunciators are discrete devices that are centralized to provide visual and audible alarms in the event of abnormal conditions or malfunctions in the process plant, machinery, or systems. Using these panels, the operator can identify which systems or equipment has malfunctioned by displaying warning lights accompanied by labels of process abnormalities.
The primary objective is to minimize downtime and prevent equipment damage by providing real-time diagnostic feedback.
The purpose of the blinking lights along the hooter sound is to draw the operator’s attention to the annunciator panel. It provides a reliable indication of the faulty system so that the operator can take appropriate action. This “First-Out” indication capability allows operators to identify the root cause of a trip when multiple alarms occur simultaneously. Annunciators play an important role in safety systems.
Working Principle of Alarm Annuciator
A change of input contacts of field instruments from Normally Open (NO) to close or from Normally Close (NC) to open causes the annunciator to change from rest to alarm mode. Hardwiring from the filed instruments to the annunciator panel provides NC/NO contact status change due to process abnormalities.
The logic circuit within the panel continuously monitors these potential-free contacts; once a state change is detected, the corresponding window logic initiates the flashing sequence and triggers the common alarm relay for the hooter.
Sequence of Operation (ISA 18.1 A / 1B)
A wide variety of sequences are available to define the operation of an individual alarm point in the normal, alert, acknowledged, and return-to-normal stages. These sequences are standardized by ISA 18.1 (formerly RP-18.1).
Among the various annunciator sequences, ISA Sequence A (equivalent to legacy Sequence 1B) is the most widely used in industrial applications due to its clear logic: The standard operation typically follows these steps:
- Signal Initiation: The field switch creates or breaks the electrical circuit to the logic module. The visual indicator flashes and the audible alarm (hooter) is activated. All points share a common power source.
- Operator Response: Pressing the Acknowledge button silences the hooter and changes the window from flashing to a “Stable” (steady-on) state.
- System Reset: When the process variable returns to normal, the contact returns to its healthy state and the visual indicator automatically turns OFF. While some ISA sequences require a manual reset, Sequence A is preferred for its automatic return to normal.
- Hardware Check: A Test button is provided to check for burnt lamps by closing a common bus circuit to every window simultaneously.
Various Push Buttons on the Annunciator panel
The annunciator panel must have three push buttons ACK, RESET, and TEST. Some panels include a “MUTE” push button also. The panel annunciator must be able to identify alarms as faults or emergencies.
- Acknowledge (ACK): push button is used to accept the fault conditions. It silences the alarm, but the alarm condition persists till the process becomes healthy. Upon acknowledgement, the flashing light usually transitions to a steady “ON” state.
- Reset: once the alarm condition becomes normal; upon pressing the reset button the window becomes normal. This button is only effective after the field fault has been cleared.
- Test: by pressing the test push button the healthy status of hardware that includes bulbs, hooters, or buzzers can be checked. It is a critical safety check to ensure no “blind spots” exist due to blown lamps.

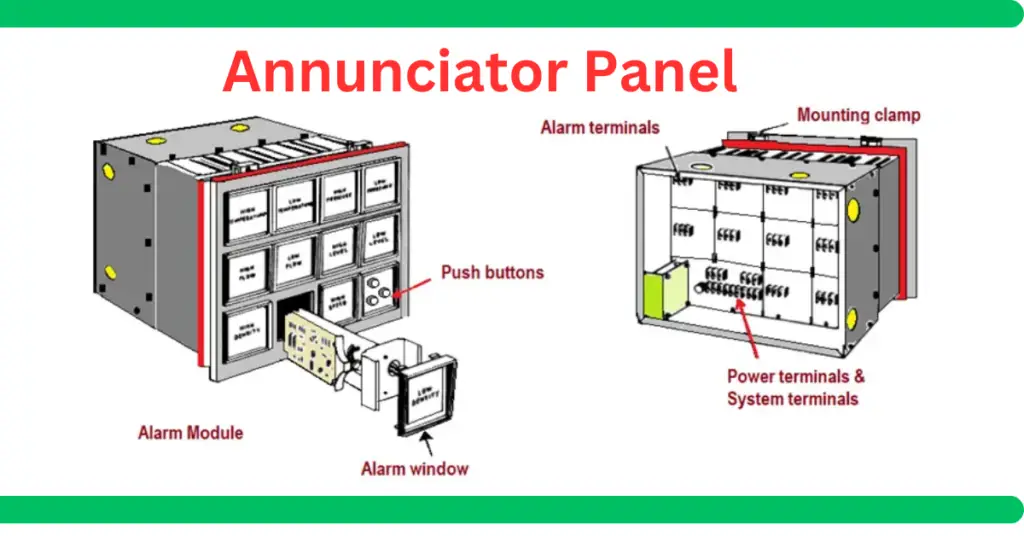

Components of an Alarm Annunciator Panel
A standard annunciator system is made up of several key elements:
- Indicator lamps: Each lamp represents a particular alarm condition. When an alarm is triggered, the corresponding light typically flashes to signal an active issue.
- Audible alert devices: Buzzers or horns are used to immediately grab the operator’s attention when an abnormal condition occurs.
- Acknowledgment controls: These allow the operator to mute the sound alarm and change the flashing light into a steady glow, indicating that the alert has been noticed but not yet resolved.
- Test and reset features: These functions help verify that all components are working properly and allow the system to return to its normal state once the fault is cleared.

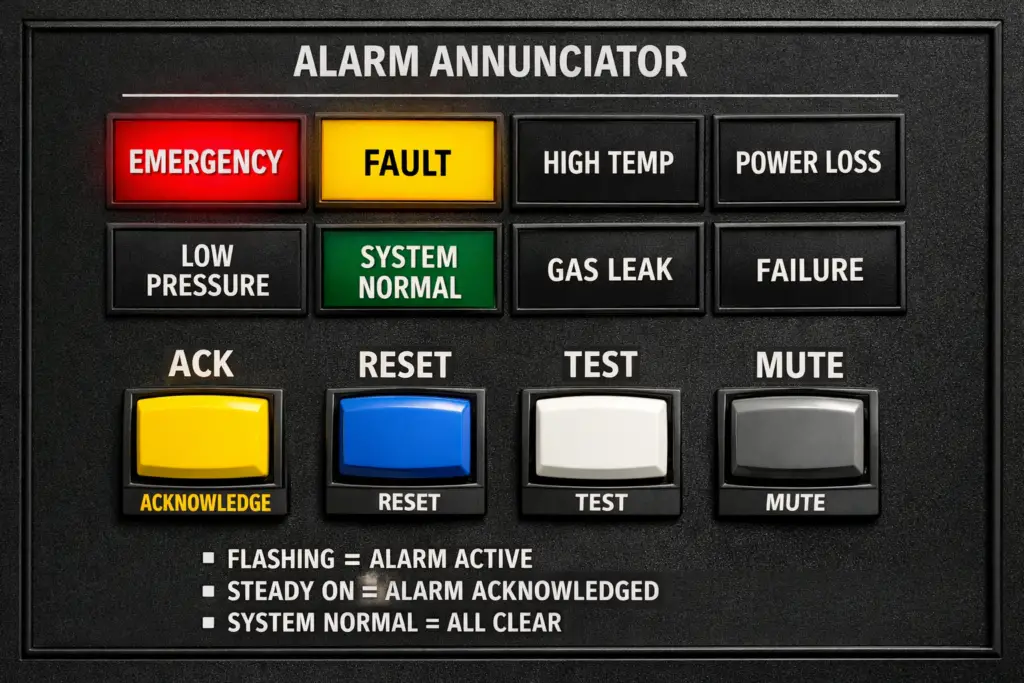

Alarm Annunciator Window Colour Status
An audible tone will accompany most warnings. Warnings can be red, yellow, green, white or blue. These colors are standardized to help operators categorize urgency at a glance:
- Colour: Red | Type: Danger | Meaning: A critical situation that requires immediate attention or indicates a system trip.
- Colour: Yellow or Orange | Type: Warning | Meaning: Not critical but it should be resolved as soon as possible to prevent a trip.
- Colour: Green | Type: Advisory | Meaning: Plant status is healthy; can also indicate a “Normal” running state.
- Colour: Blue | Type: Information | Meaning: Notice of a non-critical abnormal situation (e.g. blocked valve).
- Colour: White | Type: Status | Meaning: General status of a system state (Sequence of operation is in progress).
Applications of Alarm Annunciator Panel
Annunciator panels are indispensable in environments where manual monitoring of every sensor is impossible.
Plant Process Control
In the workplace (in chemical, plastic, pulp & paper, Oil & Gas, etc,) industrial annunciators are used to generate a warning light and sound when unsafe conditions exist. They act as a secondary safety layer to the PLC/SCADA system, providing a hardwired backup that works even if the computer network fails.
Sensors and indicators are used in industrial annunciators to indicate various process stages. If the process deviates, the industrial annunciator generates a warning light. Using the indicators, operators can be alerted to unsafe factory operations. Industrial annunciators can be classified according to their alarm light colour, which includes amber blue, green and red.
An annunciator panel alerts operators to alarm conditions in industrial processes. An engraved name of each process alarm appears on each of the backlit windows. A hard-wired switch controls the lamps in each window, which turn “ON” when a process condition enters an abnormal state (such as high temperature, low pressure, loss of cooling water flow, or many others).
The purpose of this is to draw the operator’s attention to an alarm condition. When the process is in an alarm state, the window will remain lit until the alarm is silent. The window lamps go out when the alarm is cleared (the process returns to normal).
Fire Alarm Annunciator in the Plant or Buildings
There is usually a central fire alarm annunciator panel in large buildings where fighters can reach it quickly. Fire alarms are indicated on the annunciator panel by the zone and approximate physical location. This ensures the fire department can pinpoint the exact “Zone” of ignition immediately upon arrival.
The alarm annunciator includes an audible hooter or a buzzers-like warning device to indicate alarm circuit failures. An annunciator for a fire alarm may also be connected to a control panel for heat ventilation and air-conditioning (HVAC) systems in large buildings.
The other applications of the annunciator panel are as follows:
- Power generation plants (Monitoring Boiler and Turbine parameters)
- Electrical substations (Transformer oil temp and Buchholz relay trips)
- Water treatment (Pump failure and Tank overflow alerts)
- Nuclear plants
- Aviation industry
- Marine vessels (Engine room monitoring)
Conclusion
The annunciator panel is still a vital part of industrial safety and monitoring systems. Even though modern SCADA and PLC systems provide advanced features like data logging and automation, a hardwired annunciator offers unmatched reliability. It ensures that critical alarms are seen and heard, even if there are network issues or software failures.
By following ISA 18.1 standards—especially commonly used sequences like Sequence A—industries can keep alarm handling consistent and easy to understand. Knowing how these panels work, including concepts like potential-free contacts and “First-Out” logic, helps engineers and operators quickly identify problems, reduce downtime, and avoid equipment damage.
From high-risk environments like nuclear power plants to everyday systems such as fire alarms, annunciator panels act as the final visual and audible alert system, helping maintain safe and smooth operations.
