In electrical engineering, terms like armature, stator, and rotor are often confused, especially by beginners. One common question is: “Does armature mean stator?” The short answer is no, but understanding why requires a closer look at their roles, functions, and positions in electrical machines like motors and generators.
What is an Armature?
The armature is the part of an electrical machine responsible for carrying current and converting energy.
- In a motor, the armature converts electrical energy into mechanical energy.
- In a generator, it converts mechanical energy into electrical energy.
Key Points About the Armature:
- Function-focused: It is defined by what it does, not where it is located.
- Location: Can be on the rotor (rotating part) or the stator (stationary part), depending on the machine type.
- Structure: Made of copper wire coils wound around a laminated iron core.
- Role in current flow: It carries the main current that produces or receives energy.
Examples:
- In DC motors and generators, the armature is usually on the rotor.
- In AC alternators, the armature is often placed on the stator.
What is a Stator?
The stator is the stationary part of an electrical machine. Its name comes from the Latin word for “stationary.”
Key Points About the Stator:
- Position: Always fixed; it does not rotate.
- Function: Can either:
- Provide a magnetic field via field windings, or
- House the armature windings that carry current.
- Structure: Made of a laminated steel frame with copper windings.
Examples:
- In induction motors, the stator produces the magnetic field.
- In synchronous generators, the armature winding is on the stator, while the rotor carries the field winding.

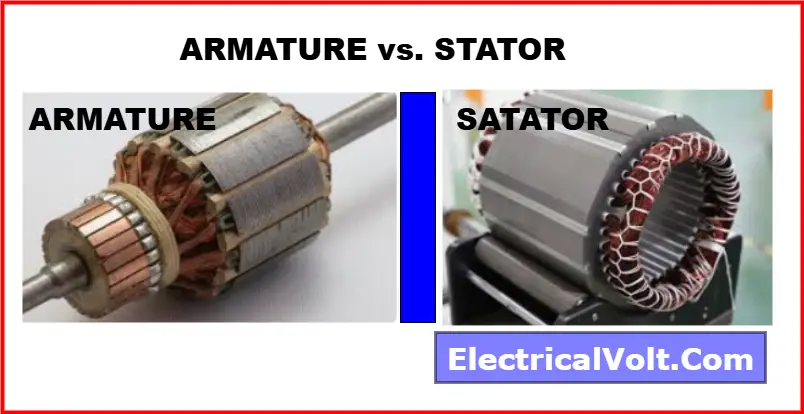

Armature vs. Stator: Key Differences
| Feature | Armature | Stator |
| Definition | Component that carries current and converts energy | Stationary part of the machine |
| Function | Energy conversion (electrical ↔ mechanical) | Provides magnetic field or houses armature |
| Location | Can be on rotor or stator | Always stationary |
| Composition | Copper coils wound on iron core | Laminated steel frame with windings |
| Example in DC Motor | On rotor | Field winding on stator |
| Example in AC Generator | On stator | Stationary core holding the armature winding |
Why Armature is Not the Same as Stator
- Armature = function (carries current and converts energy)
- Stator = location (stationary part of the machine)
- An armature can be on the stator, but not all stators contain armature windings. Similarly, armatures can also be located on the rotor.
Examples in Different Machines
- DC Motor:
- Rotor contains the armature winding.
- Stator has the field winding that creates the magnetic field.
- Synchronous Generator:
- Stator contains the armature winding (where electricity is generated).
- Rotor contains the field winding (creates a rotating magnetic field).
- Induction Motor:
- Stator has stationary windings producing the magnetic field.
- Rotor is usually a squirrel cage (no armature winding).
These examples show that the armature and stator are distinct, but they work together to make machines function efficiently.
Conclusion
To summarize:
- The armature is defined by its function: carrying current and performing energy conversion.
- The stator is defined by its location: the stationary part of the machine.
- While an armature can sometimes be part of the stator, armature ≠ stator.
Understanding the difference helps with designing, maintaining, and troubleshooting electrical machines, ensuring efficiency and safety in motors and generators.
