Industrial automation has evolved significantly over the years. Earlier control systems relied heavily on relay logic, while modern industries use Programmable Logic Controllers (PLCs) for automation. Although both are used to control machines and processes, they differ greatly in design, flexibility, and efficiency. This article explains the difference between PLC and relay logic in a simple and practical way.
What Is a PLC?
A Programmable Logic Controller (PLC) is an industrial digital control device used to automate machines and processes using software-based logic instead of physical wiring. It is a rugged, microprocessor-based system designed to operate reliably in harsh industrial environments.
A PLC:
- Reads input signals from sensors and field devices
- Processes logic using a stored control program in the CPU
- Controls outputs such as motors, valves, relays, and actuators
A typical PLC system consists of input modules, a central processing unit (CPU), programming software, a power supply, and output modules. For real-time monitoring and operation, PLCs are often integrated with an HMI (Human Machine Interface), which provides a graphical display for viewing system status and adjusting parameters.
PLCs are programmed using languages such as Ladder Logic, Function Block Diagram, and Structured Text, and are available in compact and modular configurations to suit different application needs.
Due to their flexibility, reliability, and ease of maintenance, PLCs are widely used in manufacturing, oil and gas, power generation, petrochemical, biomedical, and cement industries, forming the backbone of modern industrial automation.
Read detailed article: Programmable Logic Controller (PLC)
What Is Relay Logic?
Relay logic is a traditional control method that uses electrically operated relays, timers, and contactors to control high-power circuits with low-power signals through hardwired connections.
Each relay-based control system is implemented using:
- Physical wiring
- Relay contacts (Normally Open / Normally Closed)
- Electromagnetic or solid-state relays
- Hardwired logic circuits
A relay works by energizing a coil or semiconductor device, which opens or closes contacts to control the connected circuit.
Any change in operation or control sequence requires manual rewiring of the control panel, making relay logic less flexible for complex systems.
Read detailed article: Different Types of Relays

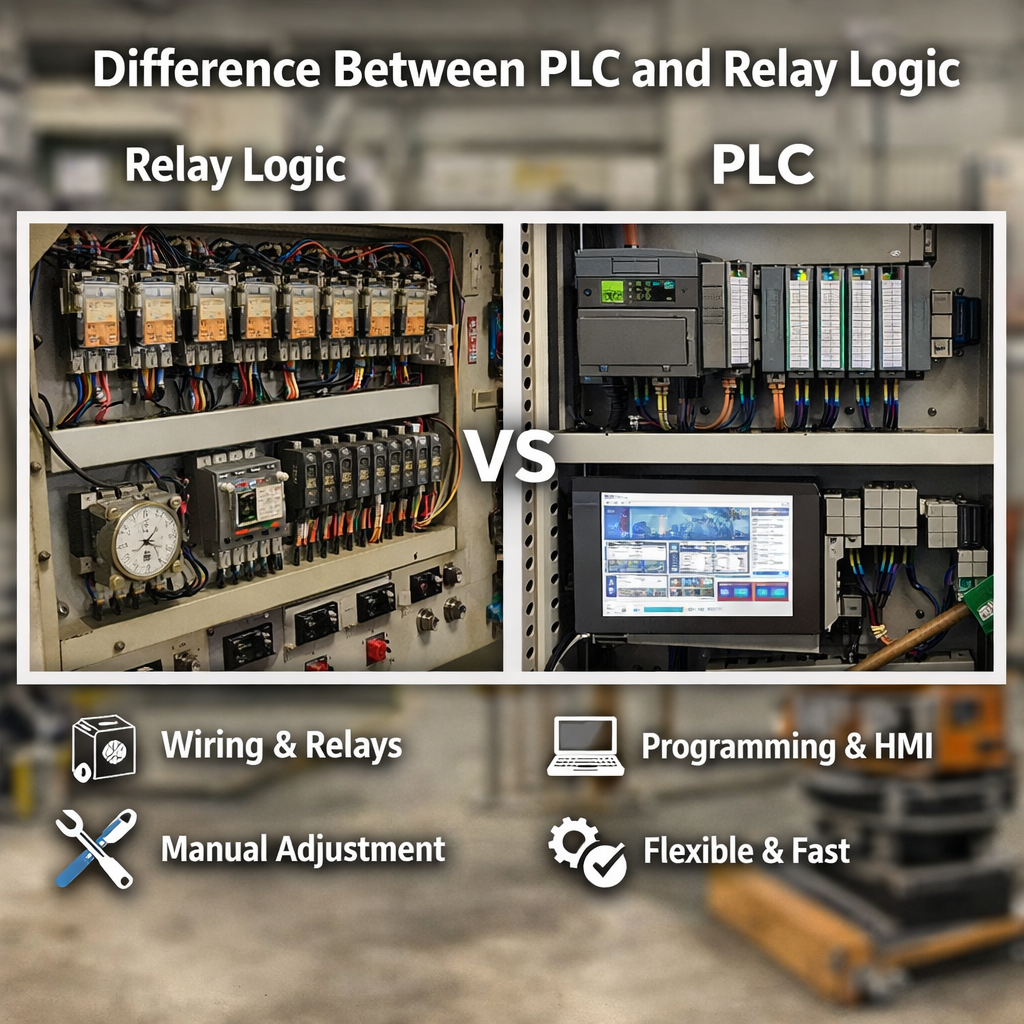

Key Difference Between PLC and Relay Logic
Programming vs Wiring
PLC Control logic is created using programming languages such as Ladder Logic, Function Block Diagram, and Structured Text. Changes can be made through software without altering hardware
Relay Logic is created by physically connecting relays and wiring contacts and coils. Any change in operation requires rewiring and system downtime.
Space and Panel Requirements
PLC panels are compact and organized, as I/O modules reduce wiring complexity, making them suitable for complex automation tasks.
Relay logic panels require large physical space due to extensive wiring and multiple components.
Maintenance and Troubleshooting
PLCs provide built-in diagnostics, error indicators, and faster fault detection.
Relay logic systems require manual continuity checks, visual inspection of relays, and time-consuming fault finding.
Reliability and Lifespan
PLCs use solid-state electronics, offering higher reliability and longer lifespan in industrial environments.
Relay logic systems rely on mechanical components that wear out over time due to frequent switching.
Speed
PLCs operate with high processing speed, allowing faster execution of control logic and real-time response to inputs and outputs.
Relay logic depends on mechanical switching, which is slower and limits response time in complex control circuits.
Applications
PLCs are used in manufacturing automation, conveyor systems, process control, and robotics.
Relay logic is suitable for simple control circuits, small machines, and low-complexity tasks.
Differences Between PLC and Relay Logic: Tabular Comparision
| Basis of Difference | Relay Logic / Relay | Programmable Logic Controller (PLC) |
| Definition | Electrically operated switch used to control high-power circuits | Microprocessor-based controller for industrial automation |
| Primary Function | Basic switching and control operations | Monitoring inputs, processing logic, and controlling outputs |
| Control Method | Hardwired electrical circuits | Software-based programming |
| Types | Electromagnetic and solid-state relays | Compact PLCs and modular PLCs |
| Construction | Coils, armatures, contacts, or semiconductor devices | Input modules, CPU, memory, power supply, output modules |
| Operation | Control signal energizes relay to open or close contacts | Inputs processed digitally to generate programmed outputs |
| Nature of Signal | Electrical ON/OFF control signals | Digital signals processed by CPU |
| Programming Requirement | No programming required | Requires Ladder Logic, FBD, Structured Text, etc. |
| Modification | Physical rewiring required | Program change only |
| Flexibility | Very limited | Highly flexible and expandable |
| Memory | No memory storage | Built-in memory for programs and data |
| Input / Output Capacity | Limited I/O capability | Large and expandable I/O capacity |
| Size | Bulky control panels | Compact and space-efficient |
| Maintenance | Difficult and time-consuming | Easy and fast using diagnostics |
| Troubleshooting | Manual inspection and testing | Built-in error messages and diagnostics |
| Speed / Response | Slower due to mechanical switching | Faster and consistent processing |
| Reliability | Lower due to mechanical wear | High reliability (no moving parts) |
| Advanced Functions | Limited to basic switching | Timers, counters, communication, automation functions |
| Applications | Motor control, lighting, home appliances, simple automation | Manufacturing, process control, power plants, robotics, smart grids |
Conclusion
While relay logic played an important role in early automation, it is no longer suitable for complex and changing industrial processes. For modern automation needs, a Programmable Logic Controller (PLC) is the preferred solution due to its flexibility, reliability, and ease of maintenance.
