Difference Between DC Series Motor and Universal Motor

Electric motors are the backbone of modern machinery and appliances. Understanding the difference between DC series motor and universal motor is crucial for engineers, students, and electrical enthusiasts. Both motors belong to the series-wound family, but their construction, working, and applications vary significantly. This article will explore DC series motor vs universal motor, providing insights into their design, speed characteristics, torque behavior, advantages, disadvantages, and typical applications.

DC Series Motor vs Universal Motor

1. Construction

DC Series Motor

A DC series motor is designed to handle heavy loads with high starting torque. Its main components include:

• Armature: Rotating part that carries current and produces torque.
• Series Field Winding: Connected in series with the armature, creating strong magnetic flux.
• Commutator and Brushes: Facilitate current flow to the armature and ensure proper rotation.
• Core (Solid): Provides a path for magnetic flux; solid core is sufficient for DC operation since eddy current losses are minimal.
• Frame and Shaft: Provide structural support and transfer mechanical power.

In a DC series motor, the solid core and field winding are designed for high current and strong magnetic flux, making it ideal for heavy-duty machinery such as cranes, elevators, and hoists.

Universal Motor

A universal motor can operate on both AC and DC supply, making it highly versatile. Its construction is similar to a DC series motor, but with important modifications to handle AC efficiently:

• Armature: Rotating part that carries current and produces torque; designed for high-speed operation.
• Series Field Winding: Connected in series with the armature; efficiently handles AC by keeping torque direction constant when flux reverses.
• Commutator and Brushes: Facilitate current flow and ensure proper rotation at high speeds.
• Core (Laminated): Laminated to reduce eddy current losses when operating on AC supply.
• Frame and Shaft: Provide structural support and transfer mechanical power.

In a universal motor, the laminated core and high-speed armature allow compact, lightweight construction, making it ideal for portable appliances and power tools like mixers, drills, and vacuum cleaners.

Key Point: While both motors have series field windings, the DC series motor uses a solid core and is optimized for DC, whereas the universal motor uses a laminated core to efficiently operate on AC and DC.

2. Working Principle

DC Series Motor

The DC series motor operates on the principle of electromagnetic induction. When DC supply is applied:

• Current flows through the series field winding and armature.
• A strong magnetic field is generated around the series winding.
• Interaction between the armature and field flux produces high torque, especially at startup.

This motor is ideal for applications like cranes, elevators, and hoists, where a strong initial push is required.

Universal Motor

The universal motor works similarly but can handle AC supply efficiently:

• On AC, both the armature current and field flux reverse simultaneously.
• This ensures that the direction of torque remains constant, allowing continuous rotation.
• Its high-speed capability makes it suitable for devices like mixers, drills, and vacuum cleaners.

3. Speed and Torque Characteristics

Key Observation: The DC series motor excels in high torque at startup, while the universal motor excels in high-speed, portable applications.

4. Applications

DC Series Motor Applications

• Industrial cranes and hoists
• Elevators and lifts
• Tramways and electric trains
• Heavy machinery requiring high initial torque

Universal Motor Applications

• Household appliances like mixers, grinders, and vacuum cleaners
• Portable tools such as drills and saws
• Sewing machines and small mechanical devices
• High-speed devices requiring compact design

5. Advantages and Disadvantages

DC Series Motor

Advantages:

• Very high starting torque, ideal for heavy loads
• Simple and robust construction
• Reliable under full load conditions

Disadvantages:

• Speed varies widely with load, unsafe at no-load
• Cannot operate on AC supply without modifications
• Requires frequent maintenance due to brush and commutator wear

Universal Motor

Advantages:

• Can operate on both AC and DC, highly versatile
• High-speed operation suitable for portable tools
• Compact and lightweight design

Disadvantages:

• Noisy operation due to high-speed brushes
• Sparks may occur at the commutator
• Shorter lifespan if used continuously under heavy load
• Requires regular maintenance

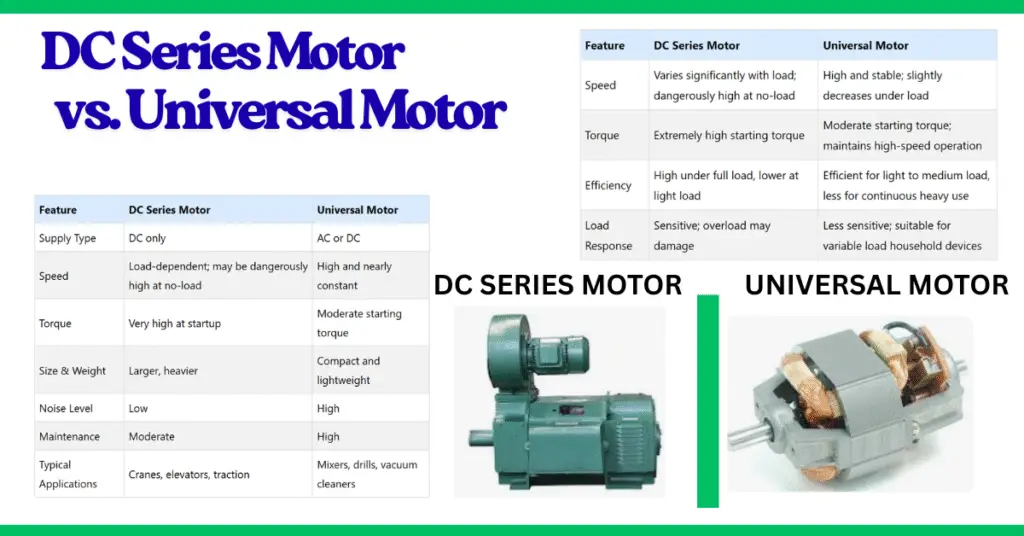

6. DC Series Motor vs Universal Motor: Quick Comparison

Conclusion

Understanding the difference between DC series motor and universal motor is critical for choosing the right motor for industrial or household applications. While the DC series motor is perfect for heavy-duty machines requiring high starting torque, the universal motor is ideal for high-speed, portable appliances operating on AC or DC supply. Comparing DC series motor vs universal motor highlights their unique strengths and limitations, ensuring efficient performance and longer operational life in electrical systems.
