Stepper motors are specialized electrical motors that convert electrical pulses into discrete angular movements. Unlike traditional DC motors, which rotate continuously, stepper motors move in precise steps, making them ideal for applications requiring accurate positioning, speed control, and repeatable motion. The application of stepper motor spans across various industries, from robotics and CNC machines to 3D printers and medical devices.
Their ability to hold a position without feedback, combined with high torque at low speeds, makes them indispensable in systems where precision and reliability are critical.
What is a Stepper Motor?
A stepper motor consists of a rotor with a permanent magnet and a stator equipped with electromagnets arranged in a specific pattern. When electrical pulses are applied to the stator windings, a magnetic field is generated that attracts the rotor. Each pulse moves the rotor by a fixed angle, known as the step angle. The number of steps per revolution determines the motor’s resolution and accuracy. Stepper motors are available in various sizes, from microwatts in watches to tens of kilowatts in heavy machinery.
Working Principle of Stepper Motor

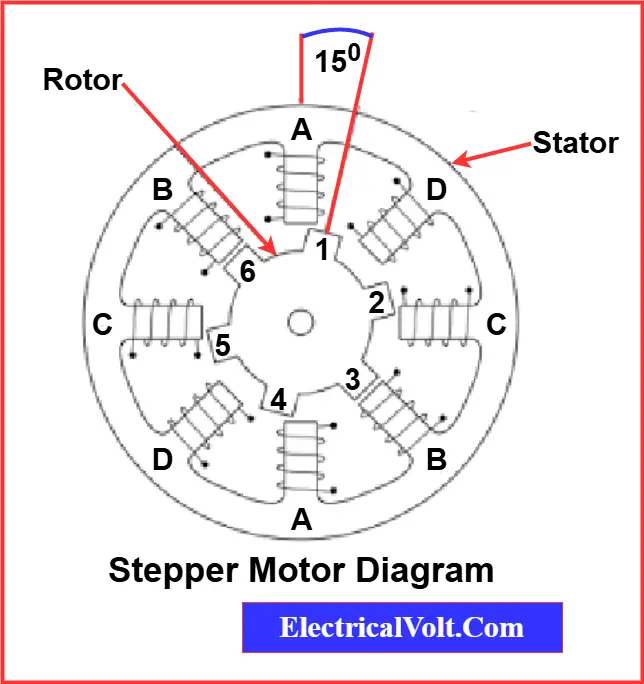

As shown in the diagram, a stepper motor consists of two main parts — a stationary part called the stator and a rotating part called the rotor. These two components work together to produce precise and controlled motion, which is why stepper motors are widely used in automation, robotics, and precision equipment.
The stator contains multiple teeth, each wound with coils that can be magnetized when energized. When a stator phase is energized, it creates a magnetic field that attracts the rotor, aligning it with the magnetic poles. As the next stator phase is energized, the rotor moves to align with the new magnetic field, resulting in step-by-step rotation.
This sequential energizing process enables the stepper motor to rotate with accurate angular movements, allowing precise control of position and speed. By increasing the number of stator teeth, the stepper motor achieves finer resolution, smoother rotation, and improved motion control — essential features for high-precision applications.
Applications of Stepper Motor
Stepper Motors in 3D Printers
Stepper motors are essential in 3D printing for precise positioning of the print head. Their stepwise motion ensures accurate layer deposition, smooth operation, and holding torque to prevent unwanted movements. High torque at low speeds allows them to move heavy print heads without losing precision.
Stepper Motors in CNC Machines
In CNC (Computer Numerical Control) machines, stepper motors provide intricate design creation with minimal errors. They offer excellent repeatability and holding torque, critical for machining delicate parts. Stepper motors integrate easily with digital control systems, making them cost-effective and reliable.
Stepper Motors in Robotics
Robots rely on stepper motors for precise joint and effector movements. Stepper motors divide rotations into fine steps, enabling accurate manipulation, high torque at low speeds, and simple integration with robotic controllers. Powerful motors allow robots to handle heavy loads while maintaining precision.
Stepper Motors in Medical Devices
Stepper motors are pivotal in medical technology, including robotic surgery, imaging equipment, and diagnostic devices. Their precision and holding ability make them ideal for surgical tools, endoscopes, and automated lab instruments. The Compactness of motor support both bipolar and unipolar configurations, offering flexibility for medical applications.
Stepper Motors in Industrial Automation
Stepper motors are widely used in conveyor belts, pick-and-place machines, and automated systems due to their precise positioning and accurate movement. Digital control allows easy integration with microcontrollers and industrial computers. Compact size, high torque-to-volume ratio, and low maintenance make stepper motors ideal for industrial automation.
Stepper Motors in Aerospace Applications
Stepper motors are used in satellites, spacecraft instrumentation, and unmanned aerial vehicles (UAVs) for precise control of sensors, antennas, and mechanical actuators. Their high reliability, accuracy, and ability to operate in extreme environmental conditions make them crucial for aerospace applications of stepper motor.
Stepper Motors in Consumer Electronics
Stepper motors are widely found in consumer electronics such as cameras, CD/DVD drives, printers, and smart home devices. Their ability to provide precise positioning, quiet operation, and compact size allows seamless integration into modern electronic devices, enhancing functionality and performance.
Stepper Motor in Camera Platforms
Stepper motors are used in camera platforms for photography, videography, and surveillance applications. They control the camera’s pan (left-right) and tilt (up-down) movements with high precision and smooth motion. This enables accurate positioning, allowing the camera to capture clear images or videos from various angles with improved accuracy, stability, and reliability during operation.
Stepper Motor in Scientific Equipment
Stepper motors are widely used in scientific instruments that require high precision and accuracy. They help researchers and engineers achieve reliable and repeatable results in laboratory and manufacturing applications.
Instruments such as spectrometers and microscopes use stepper motors to control movement with fine accuracy, allowing precise sample positioning and focus adjustment. This ensures consistent measurements, better image clarity, and efficient operation of scientific equipment.
Stepper Motor in Vending Machines
Stepper motors play a vital role in the smooth operation of vending machines. Once a payment is made, the stepper motor precisely controls the dispensing mechanism to deliver the selected product accurately.
By following programmed motion patterns, the motor moves the dispensing system—such as a rotating coil, slider, or conveyor path—ensuring that only one item is released at a time. This prevents product jams and guarantees consistent performance.
The high accuracy, reliability, and repeatable motion of stepper motors make them essential for efficient and error-free vending machine operation.
Other Applications
Stepper motors also appear in ATMs, home automation systems, aerospace instruments, textile machinery, and entertainment animatronics, demonstrating their versatility across both consumer and industrial sectors.
Summary Table: Applications of Stepper Motor
| Application | Description / Key Benefits |
| 3D Printers | Precise print head movement, accurate layers, smooth operation, high torque at low speeds. |
| CNC Machines | High repeatability, precise machining, holding torque, easy digital control integration. |
| Robotics | Accurate joint and effector movement, fine step control, high torque, simple system integration. |
| Medical Devices | Precise movement of surgical tools and lab instruments, compact, supports bipolar/unipolar wiring. |
| Industrial Automation | Accurate conveyor and pick-and-place movements, easy microcontroller integration, high torque-to-size ratio. |
| Aerospace Applications | Controls sensors, antennas, and actuators, reliable in extreme conditions. |
| Consumer Electronics | Precise control in cameras, CD/DVD drives, printers, and smart devices; compact and quiet. |
| Other Applications | Used in ATMs, home automation, textile machines, and animatronics; versatile and precise. |
Advantages of Stepper Motor
Stepper motors offer multiple benefits, making them ideal for precision and automation applications. Here are the key advantages of stepper motor:
- High Precision – Provides accurate angular positioning and repeatability, making it suitable for applications requiring precise control.
- Holding Torque – Can maintain its position without power, ensuring stability and preventing unwanted movement.
- Ease of Control – Operates with simple digital pulse signals without needing complex feedback systems, simplifying integration with controllers.
- Versatility – Works effectively under varying loads and speeds, making it adaptable to different applications.
- Efficient Energy Conversion – Converts electrical energy into mechanical motion using Faraday’s principle, enhancing device performance.
- Speed Control – Rotor speed can be adjusted by changing the number of magnets or input pulses, allowing precise motion management.
These advantages make stepper motors highly reliable, precise, and versatile for applications in robotics, CNC machines, 3D printers, medical devices, and industrial automation.
Disadvantages of Stepper Motor
Despite their many advantages, stepper motors have some limitations. Here are 5 key disadvantages of stepper motor:
- Torque Drops at High Speeds – Stepper motors provide high torque at low speeds, but torque decreases significantly as speed increases.
- Resonance Issues – At certain speeds, stepper motors can experience vibration or resonance, which may affect precision and smoothness.
- Power Consumption – They consume power continuously even when holding a position, which can be less energy-efficient than other motors.
- Limited Speed Range – Stepper motors are not suitable for very high-speed applications due to step loss and reduced torque.
- No Feedback by Default – Standard stepper motors operate open-loop, so they cannot detect missed steps without additional sensors or encoders.
These limitations should be considered when choosing a stepper motor for specific applications, especially where high speed or energy efficiency is critical.
Read detailed artcile: 14 Advantages and Disadvantages of Stepper Motor
Conclusion
Stepper motors have revolutionized precision control and automation. Their ability to move in discrete steps with accurate positioning, high holding torque, and ease of digital control makes them vital in industries ranging from medical and robotics to CNC machining and 3D printing.
The applications of stepper motor continue to expand as technology advances, enabling innovative solutions, improving efficiency, and delivering reliable performance across countless industries and automated systems.
